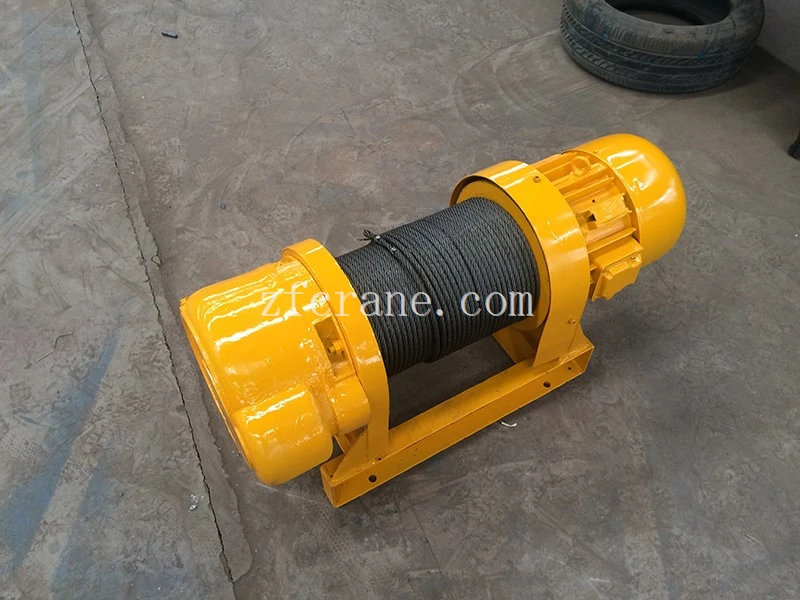

JKD Electric Portable Planetary Drive Winch



The JKD Electric Portable Planetary Drive Winch is a newly optimized lightweight hoisting solution engineered to deliver flexible mobility and convenient field deployment without sacrificing traction power or operational stability. Different from traditional heavy fixed winches, this planetary-driven electric winch perfectly balances compact size, lightweight design and powerful pulling performance, making it highly adaptable for versatile lifting, hauling and tensioning tasks. It has become an indispensable portable hoisting tool for construction workers, engineering teams, and outdoor operation personnel.

Featuring an integrated miniaturized planetary drive system and optimized overall structure, the JKD portable winch achieves strong pulling force while maintaining ultra-portable dimensions. Its streamlined and lightweight body allows easy manual transportation, quick on-site positioning and tool-free installation, greatly improving field working efficiency. It is widely applicable for workshop equipment maintenance, building construction hoisting, outdoor engineering traction, temporary on-site lifting and other flexible working scenarios.

Driven by a high-stability planetary gear transmission mechanism, the winch outputs steady and consistent torque with extremely smooth running performance. The precision gear matching effectively reduces vibration, noise and mechanical impact during frequent start-stop operations. Built with high-strength wear-resistant components and durable alloy structure, the unit withstands long-term frequent heavy-duty cycling work, ensuring stable load control and maximum operational safety in daily intensive tasks.

Every JKD portable planetary winch undergoes strict factory inspection, including load testing, torque calibration and safety performance verification before delivery. With reliable quality, flexible mobility and excellent cost performance, it serves as a trustworthy and practical hoisting equipment for both professional industrial operations and daily on-site maintenance work.





•Lightweight and portable design for easy transport.

•Electric drive for effortless operation and reduced manual effort.

•High-capacity lifting capabilities for various applications.

•Quick setup with user-friendly controls.

•Durable construction to withstand rugged conditions.





1. Building construction;

2. Road and bridge construction;

3. Factory, ports, and metallurgy.





Model	JKD
Load Capacity	1~10 t
Rope Capacity	20~500m
Working Speed	20~36 m/min
Power Supply	220-690V, 50/60HZ, 3Phase





Model	Rated Load	Rated Speed	Rope Capacity	Rope Diameter	Motor Power	Overall Dimensions	Overall Weight
	KN	m/min	m	mm	KW	mm	KG
JK0.75D	7.5	30	100	9.3	3	900×340×400	165
JK1.25D	12.5	46	120	11	7.5	1140×400×450	315
JK1.60D	16	28	160	12.5	7.5	1200×400×480	350
JK2.0D	20	36	190	13	13	1400×470×548	510





1. Damaged Transmission Components Causing Noise and Inaction

During operation, the winch's transmission components (e.g., chains, gears, or couplings) may wear out, corrode, or fail due to prolonged friction or overloading. This can weaken the transmission linkage, resulting in noise without movement.



Solution: Inspect the drive chain and other transmission parts. Replace any damaged or excessively worn components to restore proper functionality.



2. Motor Malfunction Leading to Noise and No Movement

The winch relies on the motor to drive its mechanism. If the motor fails (e.g., burnt windings, bearing seizure) or the power supply is insufficient (e.g., voltage drop, faulty wiring), the winch may produce noise without operation.



Solution: Check the motor and electrical circuits. Repair or replace defective parts, ensuring stable power delivery.



3. Worn or Broken Planetary Bushings Causing Operational Failure

Planetary bushings are critical in the winch's transmission system, linking the motor to internal gears. If these bushings wear out or break, abnormal noise and motion resistance may occur.



Solution: Replace damaged planetary bushings and inspect associated components (e.g., gears, shafts) for wear. Lubricate as needed.



4. Other Potential Causes and Troubleshooting

Additional factors may include:

- Brake system failure (stuck or misaligned brakes).

- Planetary gear damage (chipped teeth or misalignment).

- Faulty limit switch (preventing activation).



Preventive Measure: Conduct regular maintenance, including lubrication, alignment checks, and part inspections, to avoid unexpected failures.



Conclusion

A winch emitting noise without movement often indicates issues such as transmission wear, motor failure, or planetary bushing damage. To ensure reliable operation, routinely inspect mechanical and electrical components, addressing defects promptly.





FAQ 1

Q: What is the biggest advantage of the JKD portable planetary winch compared with conventional winches?

A: Its core strength is the perfect combination of lightweight portability and powerful planetary driving performance. It abandons the bulky structure of traditional winches, supporting easy moving and quick installation, while retaining strong traction and stable torque to ensure no power loss during portable field work.



FAQ 2

Q: What working scenarios is the JKD portable planetary winch suitable for?

A: It is widely used for flexible operation scenarios that require frequent equipment transfer and temporary lifting work, including construction site hoisting, outdoor engineering traction, workshop equipment maintenance, factory material handling and various temporary on-site heavy-duty tasks.



FAQ 3

Q: What performance benefits does the planetary drive system bring to this portable winch?

A: The precision planetary gear system provides stable and uniform torque output, enabling smoother operation, lower vibration and lower noise. It performs excellently under frequent start-stop and cyclic working conditions, effectively extending service life and improving operation safety.



FAQ 4

Q: Is the JKD portable winch suitable for long-term frequent daily heavy-duty work?

A: Yes. Adopting wear-resistant planetary gears and durable reinforced structure, the winch is specially optimized for frequent cyclic operation. It maintains safe and stable load capacity under long-term daily heavy-duty use with low failure rate.



FAQ 5

Q: How does the factory guarantee the quality of JKD portable electric winches?

A: Every unit undergoes full-process factory inspection, including load capacity testing, torque calibration, operational stability testing and safety inspection before shipment. Strict quality control ensures consistent and reliable performance for both industrial and daily field applications.
