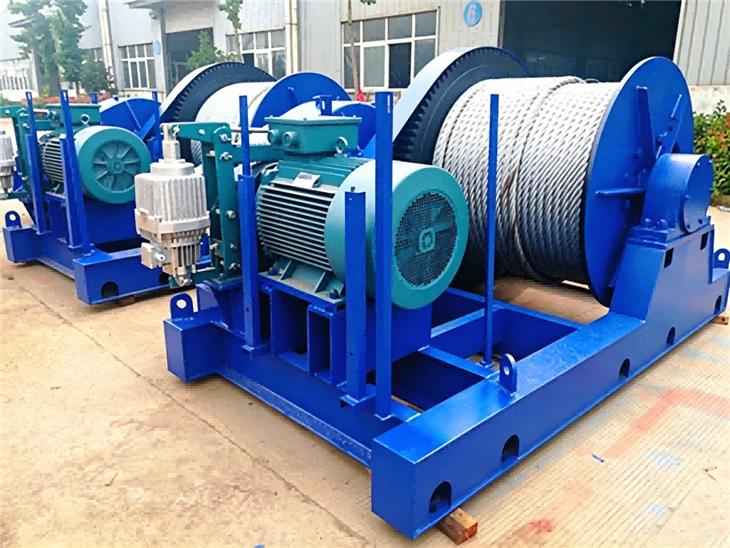

JM Electric Wire Rope Winch



The JM electric wire rope winch is a heavy-duty industrial winch built specifically for high-capacity lifting, horizontal pulling and bulk material handling tasks. It is widely recognized in the industry for its ultra-large load range, stable continuous operation and strong environmental adaptability. Unlike small ordinary electric winches that can only handle light-duty work, this JM series winch focuses entirely on harsh, high-intensity engineering scenarios where large pulling force and reliable long-duration operation are required.

Supporting a maximum load capacity of up to 200 tons and a wire rope storage length reaching 3600 meters, this heavy-duty electric winch delivers powerful performance for extreme working conditions. We also support fully customized operating speed and power supply configurations, so the equipment can be perfectly matched to different project requirements, site power conditions and construction processes. Whether you need slow-speed precise positioning or fast-cycle material handling, the JM wire rope winch can be adjusted to fit your actual job site needs.

Engineered for versatile heavy-load operation, the JM electric winch is capable of vertical heavy lifting, long-distance horizontal traction, accurate equipment positioning and large-volume material transportation. It performs steadily across a wide range of complex engineering environments, solving the core difficulty of heavy object movement that conventional handling equipment cannot complete.

In building construction projects, it is commonly used for lifting steel structures, construction formwork, concrete components and heavy mechanical equipment, especially suitable for high-rise and large-span building construction. In bridge engineering, the winch assists in steel beam traction, bridge component positioning and foundation heavy-duty pulling work, ensuring accurate and safe installation of large bridge parts.

It also serves as core lifting and traction equipment for mining operations. In underground and open-pit mines, the JM series winch handles regular mine material lifting, equipment traction and underground haulage work. Its stable power output and overload resistance effectively adapt to the complex, dusty and high-load working environment of mining sites.

Beyond construction and mining fields, this heavy-duty electric winch is also widely applied in general industrial material handling, factory equipment disassembly and assembly, large cargo traction and yard turnover operations. It greatly improves construction efficiency, reduces manual labor intensity and ensures stable and controllable operation of various heavy-load processes.

In terms of structural and performance advantages, the JM electric wire rope winch adopts reinforced heavy-duty frame structure and high-strength wire rope configuration. The whole machine features strong rigidity, low vibration and stable load-bearing performance. The matched motor and reduction gear system provides sufficient power reserve, avoiding stalling or power attenuation under long-term full-load operation. Equipped with reliable braking and overload protection devices, the winch effectively prevents slipping, overloading and accidental falling during operation, greatly improving overall construction safety.

With flexible customization capability, stable extreme-load performance and wide scenario adaptability, the JM electric wire rope winch has become the preferred heavy-duty traction and lifting equipment for engineering construction, mining development and industrial production projects.





The JM electric wire rope winch is designed for heavy-duty lifting, pulling and material handling applications where high load capacity and reliable traction are required. Unlike small portable winches, the JM series uses a heavy-duty steel frame, electric motor, reduction gearbox, wire rope drum and braking system to provide stable pulling force for large loads.

Depending on the required load capacity, rope length and working speed, the JM electric winch can be configured for construction sites, bridge engineering, factories, mines and equipment installation projects.

The large-capacity wire rope drum allows the winch to accommodate long wire rope lengths, while the electric drive system provides consistent pulling performance during continuous operation.

1. Heavy-Duty Load Capacity

The JM series covers a wide range of load capacities from 0.5 to 200 tons, allowing the winch to be configured for different heavy lifting and pulling requirements.

2. Large Wire Rope Capacity

Depending on the model and configuration, the JM winch can accommodate 20–3,600 m of wire rope. This makes it suitable for applications requiring long-distance pulling or extended lifting travel.

3. Controlled Working Speed

The JM series offers working speeds of approximately 5–20 m/min, with single-speed or dual-speed configurations available according to the project requirements.

4. Electric Drive System

An electric motor and reduction transmission provide the torque required for heavy-load winching operations.

5. Flexible Configuration

The winch can be configured according to:

Load capacity

Wire rope length

Working speed

Wire rope diameter

Motor power

Power supply

Drum configuration

Control system

Installation requirements

6. Suitable for Industrial Applications

The heavy-duty design makes the JM series suitable for construction, bridge projects, mining, machinery installation, factories, ports and other engineering applications.





• Construction

The JM construction winch can be used for lifting and pulling construction materials, steel structures, machinery and prefabricated components.

Related applications:

Building construction

Steel structure installation

Construction material lifting

Heavy equipment installation

Foundation engineering

• Bridge Construction

The controlled pulling and lifting capability of the JM series makes it suitable for bridge construction and infrastructure projects.

Applications may include:

Steel structure pulling

Bridge component positioning

Heavy-load traction

Construction equipment installation

• Mining

JM electric wire rope winches can be configured for heavy material handling and equipment pulling in mining and industrial environments.

• Machinery Installation

The winch can be used to move, pull and position heavy machinery during factory construction, equipment relocation and industrial installation.

• Port and Shipyard

Depending on the configuration, JM winches can be used for heavy-duty pulling, equipment positioning and material handling in ports, docks and shipyards.





Load Capacity	0.5~200 t
Rope Capacity	20~3600m
Working Speed	5~20 m/min;(single speed or dual speed)
Power Supply	220-690V, 50/60HZ, 3Phase

Model	JM Series
Motor Power	4~160KW
Motor Type	YZR/Y Series
Control Mode	Push Button/ Wireless Remote

Drum Type	Single Drum/ Double Drum
Brake Type	Electromagnetic/ Hydraulic Thruster Brake
Installation	Fixed Base
Customization	Available





Model	Rated Load	Rated Speed	Rope Capacity	Rope Diameter	Motor Type	Motor Power		Overall Dimensions	Overall Weight
	KN	m/min	m	mm		KW		mm	KG
JM1	10	15	100	9.3	Y112M-6	3		620×701×417	270
JM1.6	16	16	150	12.5	Y132M-6	5.5		945×996×570	500
JM2	20	16	150	13	Y160M-6	7.5		945×996×570	550
JM3.2	32	9.5	150	15.5	YZR160M-6	7.5		1430×1160×910	1100
JM3.2B	32	12	195	15.5	YZR160M-6	7.5		1082×1014×610	536
JM5	50	10	270	21.5	YZR160L-6	11		1235×1230×805	1560
JM5B	50	9.5	200	21.5	YZR160L-6	11		1620×1260×945	1800
JM5C	50	9.5	250	21.5	YZR160L-6	11		1235×1230×805	1800
JM5D	50	15	250	21.5	YZR180L-6	15		1235×1230×805	1850
JM5E	50	20	250	21.5	YZR200L-6	22		1235×1230×805	2000
JM6	60	9.5	270	24	YZR180L-6	15		1235×1509×805	1800
JM8	80	8	250	26	YZR180L-6	15		2090×1475×956	2900
JM8B	80	9.5	350	26	YZR180L-6	15		1075×1598×985	2650
JM10	100	8	170	30	YZR200L-6	22		2090×1475×956	3000
JM10B	100	9.5	250	30	YZR200L-6	22		1705×2200×985	3500
JM12.5	125	8	300	34	YZR225M-6	30		2880×2200×1550	5000
JM16	160	10	500	37	YZR250M2-8		37	3750×2400×1850	8800
JM20	200	10	600	43	YZR280S-8		45	3950×2560×1950	9900
JM25	225	9	700	48	YZR280M-8		55	4350×2800×2030	13500
JM32	320	9	700	56	YZR135S-8		75	4500×2850×2100	14800
JM50	500	9	800	65	YZR315M-8		90	4930×3050×2250	19500
JM65	650	10.5	3600	64	LA8315-8AB		160	5900×4680×3200	46000



Actual specifications vary by model. Please contact us with your required load capacity, rope length, working speed and power supply for a recommended configuration.









      A JM electric wire rope winch is an industrial winching machine that uses an electric motor and drum to wind steel wire rope for lifting, pulling and positioning heavy loads.

      The JM series is designed for applications that require reliable pulling force, controlled movement and relatively long wire rope capacity. Depending on the configuration, the winch can be used for vertical lifting, horizontal pulling or heavy-load positioning.

      The main components typically include an electric motor, reduction gearbox, wire rope drum, steel wire rope, braking system, control system and supporting frame. The exact configuration can be customized according to the required load, speed, rope length and operating environment.

      Compared with small portable electric winches, the JM series is intended for heavy-duty industrial and construction applications where higher capacity and longer operating cycles may be required.





The JM electric wire rope winch can be configured for both lifting and pulling applications. However, the required configuration is different depending on the working condition.

For vertical lifting, the selection should consider rated load, lifting height, rope reeving, braking and safety requirements.

For horizontal pulling, line pull, travel distance, pulling speed, anchoring and rope arrangement become particularly important.

Therefore, customers should provide the actual working conditions instead of selecting a winch based only on rated capacity.





The correct JM winch should be selected according to the complete working conditions.

Before choosing a model, consider:

1. Required Load Capacity

Determine the maximum load that the winch needs to lift or pull.

2. Lifting or Pulling

Specify whether the winch will be used for vertical lifting, horizontal pulling or another movement method.

3. Working Speed

The required speed affects motor power, gearbox configuration and overall winch selection.

4. Wire Rope Length

Long-distance applications may require a larger drum and greater rope capacity.

5. Power Supply

Provide the local electrical supply, such as voltage, frequency and phase.

6. Working Environment

Outdoor, indoor, dusty, humid, marine or other environments may require different configurations.

7. Working Frequency

Continuous or frequent operation should be considered when selecting the motor, gearbox and braking system.





If your project requires controlled heavy-load pulling or relatively slow movement, a JM electric wire rope winch may be suitable.

If higher lifting speed is the main requirement, a JK electric winch may be a better option.

The final selection should be based on the actual load, travel distance, speed and working conditions.



Feature	JM Series	JK Series
Typical Use	Heavy-duty lifting and pulling	Higher-speed lifting applications
Speed	Controlled / relatively slow	Higher operating speed
Main Focus	Pulling force and controlled movement	Faster lifting
Typical Applications	Construction, bridge, mining, machinery	Construction and lifting equipment
Selection	Based on load, rope capacity and speed	Based on load and required lifting speed





1. **Inspection and Maintenance:**

- Before operation, conduct a thorough inspection of the winch, including the wire rope, hooks, brakes, and control systems. Ensure all components are in good working condition.

- Regularly lubricate moving parts and replace worn-out components to prevent mechanical failures.

2. **Load Capacity:**

- Never exceed the winch's rated load capacity. Overloading may lead to equipment failure, wire rope breakage, or tipping of the winch.

3. **Secure Anchoring:**

- Ensure the winch is securely anchored to a stable structure or ground. Unstable anchoring can cause the winch to shift or overturn during operation.

- Use appropriate rigging hardware, such as shackles and slings, to secure the load.

4. **Clear Communication:**

- Establish clear communication signals between the winch operator and other workers. Use hand signals, radios, or other communication devices to coordinate movements.

- Designate a signal person to guide the operator when visibility is limited.

5. **Personal Protective Equipment (PPE):**

- All personnel involved in winch operations must wear appropriate PPE, including helmets, gloves, safety boots, and high-visibility clothing.

- Keep a safe distance from the winch and the load during operation to avoid injury from snapping wires or falling objects.

6. **Emergency Procedures:**

- Familiarize the team with emergency stop procedures and the location of emergency controls.





•Technical Specifications: Unified training for new employees, including production processes, equipment usage, and quality standards.

•Incoming Material Inspection: Carefully select suppliers, thoroughly review raw materials, and store and manage them according to standards after acceptance.

•Plan Verification: Design drawings and product plans are re-checked by the chief engineer to ensure compliance with standards.

•Process Quality Inspection: Implement a "three inspections" system during the production process to ensure product quality meets standards.

•Finished Product Inspection: Inspect the appearance, performance, and safety of products to ensure that they meet quality requirements before shipment.





1. Q: What is a JM electric wire rope winch?

A: A JM electric wire rope winch is a heavy-duty industrial winch used for lifting, pulling, hauling and positioning loads with steel wire rope.



2. Q: What is a JM winch used for?

A: JM winches are commonly used in construction, bridge engineering, mining, machinery installation, factories, ports and other industrial applications.



3. Q: What is the capacity of a JM electric winch?

A: The JM series on this page covers approximately 0.5–200 tons, depending on the model and configuration.



4. Q: How much wire rope can a JM winch hold?

A: The listed rope capacity range is approximately 20–3,600 m, depending on the model and drum configuration.



5. Q: Can a JM winch be used for horizontal pulling?

A: Yes. The JM series can be configured for heavy-load pulling applications. The required line pull, rope length, speed and anchoring arrangement should be considered when selecting the winch.



6. Q: What is the working speed of a JM electric winch?

A: The listed working speed range is approximately 5–20 m/min, with single-speed or dual-speed configurations available.



7. Q: Can the JM electric wire rope winch be customized?

A: Yes. Configuration can be discussed according to load capacity, rope length, working speed, motor power, electrical supply and other project requirements.



8. Q: How do I select the right JM electric wire rope winch?

A: Provide the required load, lifting or pulling method, working speed, rope length, power supply and working environment. These details allow the appropriate JM winch configuration to be determined.
